Technical parameters:
1. Motor speed: 12,000rpm/min
2. Switching power input: 110V—240V
Input voltage/current/power: 12VDC/5A/60W,
3. Collets:1-6mm
4.Working table for drilling: 123*100mm
5.Slider travel: Axis X=145, Axis Y=32, Axis Z=32 (mm)
6.Maximum size of machine vice: 50mm
7.Center height of metal lathe:75mm
8.Maximum diameter for woodturning lathe: 50mm
9. Length for metal lathe and woodturning lathe: 135mm
10. Length for Big wood-lathe: 280mm
11.Maximum diameter for Big wood-lathe: 150mm
12. Maximum diameter of beads machine: 20mm
13. Maximum diameter of three-jaw chuck: 50mm
14. There are three circles of holes on the dividing plate with numbers of the holes 36, 40 and 48.
15.Tools for circular milling machine: 4*4 mm
16.Blade for circular saw: 63-80 mm
17.Tools for 2 position tool post L: 4*4mm-8*8mm
18.Rotary table: Spindle 360 angle, resolution: 0.15
19.Jigsaw table: 120mm*100mm
20.The max cutting capacity of Jigsaw is 4mm for Hard Wood, 7mm for Plywood, 18mm for Soft Wood,
0.5mm for Aluminum and 2mm for Acrylic. The bow-arm will help the durability of the blade.

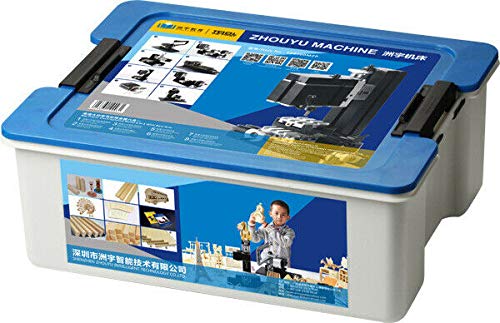

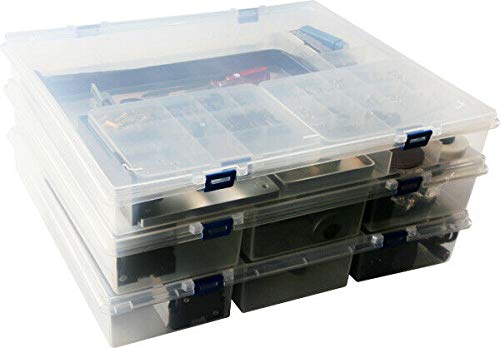

21. The storage box is special designed, every parts could be save properly when it is not used.
What’s in box?
1 X 60W Metal 16 In 1 mini machine kit With Bow Arm
60W Metal 16 In 1 mini machine kit With Bow Arm Only one kind of machine can be assembled at the same time.

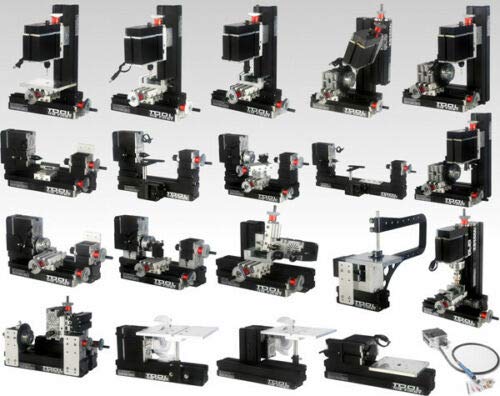

This machine kit can be assembled into 1)Bow-arm jigsaw 2)Wood-turning lathe 3)Metal lathe 4)Milling machine 5)Drilling machine 6)Sanding machine 7)Flexible hand-held machine 8)Gear drilling machine 9)Big wood-turning machine 10)Beads machines 11)Spinning circular Saw 12)6-shaft drilling and milling with dividing plate 13)Circular milling machine 14)Spinning lathe 15)Gear milling machine A 16)Horizontal milling machine

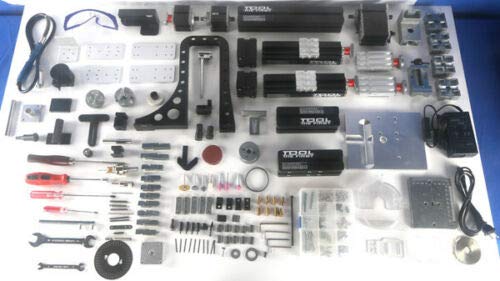

Woodworking Tools Main parts: headstock, central block, jigsaw base, jigsaw casing, gear, woodturning chisel base, cross slider, big slider, drilling lever, drilling table, jigsaw table, connection piece, tailstock, sanding paper panel, machine vice(all of the parts above are made of metal).
All machines are safe to touch except milling machines. It is requested to use under adult’s instructions. It is a good tool for families and schools to make model airplane and other wooden models and crafts.
Certificate transformer passed: CE,UL
